BlogAudio Delay Module 12 Steps with Pictures Circuit Diagram The biggest difference is that I have removed the "long delay" distortion pot. This potentiometer is basically forcing the chip to under-sample the input to create a longer delay and, in my opinion, doesn't sound very good. If you like under-sampled, long-delayed, audio, by all means throw in a large (1M) potentiometer in series with the delay pot.

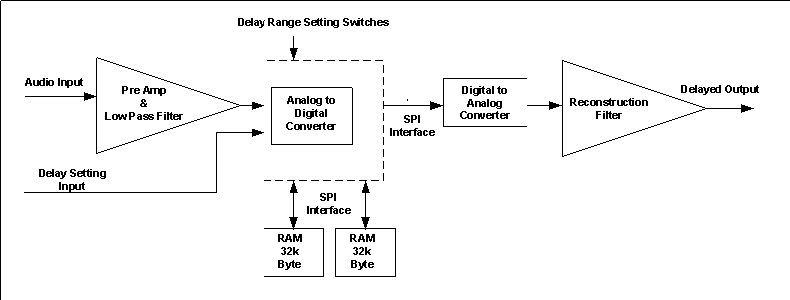

This project shows you how to make a unit which can produce a delay of up to 8 seconds on an input audio signal. The circuit outputs a delayed version of an input audio signal. It can also be useful to use an external signal to control the delay. All kinds of strange sound effects can be produced by driving the delay setting input with HOW TO MAKE SOUND DELAY CIRCUITHi friend in this video i have made a sound delay circuit which produces echos in the sound i hope you enjoy this video please How Delay Line Circuit Works. The following schematic shows the complete schematic for the audio delay line. When you actually create a delay in an audio signal, you generate a variety of interesting audio effects. The most noticeable is the simulation of echo effect.
Audio Delay Circuit: Creating Echo and Reverberation Effect in Audio Circuit Diagram
Applications of Audio Delay Circuits. Audio delay circuits have a wide range of applications in various fields of audio production and sound engineering. Here are some of the most common applications: 1. Music Production. In music production, audio delay effects are used to add depth, space, and texture to individual instruments and overall mixes. The Echo Base PT2399-based circuit incorporates an LFO (low frequency oscillator) for delay length modulation as well as some other nifty features. I'll be adding my own buffered guitar pedal with an in-depth analysis soon! Another experimental circuit I have in the works is the source of a lot of the Mods below. 8Bit Digital Delay / LO-FI Bitcrusher / Reverse Speech DSP Pedal Effects for Guitar, Voice, Synths, etc.
Power Supply of an Audio Delay Circuit. Conclusion. An audio delay circuit is essential because it makes music or sounds more attractive in a room or given space. The Bucket Brigade device has completed the construction of this circuit cheaper. So you don't have to worry about the cost. The analog audio delay circuit is a useful way to create delays in audio processing. This kind of circuit utilizes an electrical current, or charge, to store an analog signal and then later replay it. Analog Delay Line Echo And Reverb Under Musical Effects Circuits 13934 Next Gr. Audio Delay Line Circuit For Echo Reverb Effects Homemade Delay circuits are used to delay the progression of a analogue or digital signal through a circuit. You may want to delay a signal to: Allow time for a circuit to settle. Debounce a switch. Create an audio delay/reverb effect. Create an oscillator at a specific frequency (e.g. feeding back the output of three inverters connected in series creates an oscillator).
